Vehicle Telematics & OBD-II Scanner App

Comprehensive technical analysis of the ELM327 Mini Wireless OBD-II adapter from your photo, full feasibility blueprint for creating a custom Android telematics app, real-time sensor parameters, and commercial monetization strategies.

⚡ App & Web Dashboard Ready for Toyota Fortuner

Engineered specifically for Fortuner 2009 (1KD-FTV 3.0L D-4D) with ELM327 Bluetooth

⚡ Open Live Web Dashboard 📲 Download APK

Your Device: ELM 327 Mini Wireless Interface

Hardware Analysis: ELM327 Mini Wireless

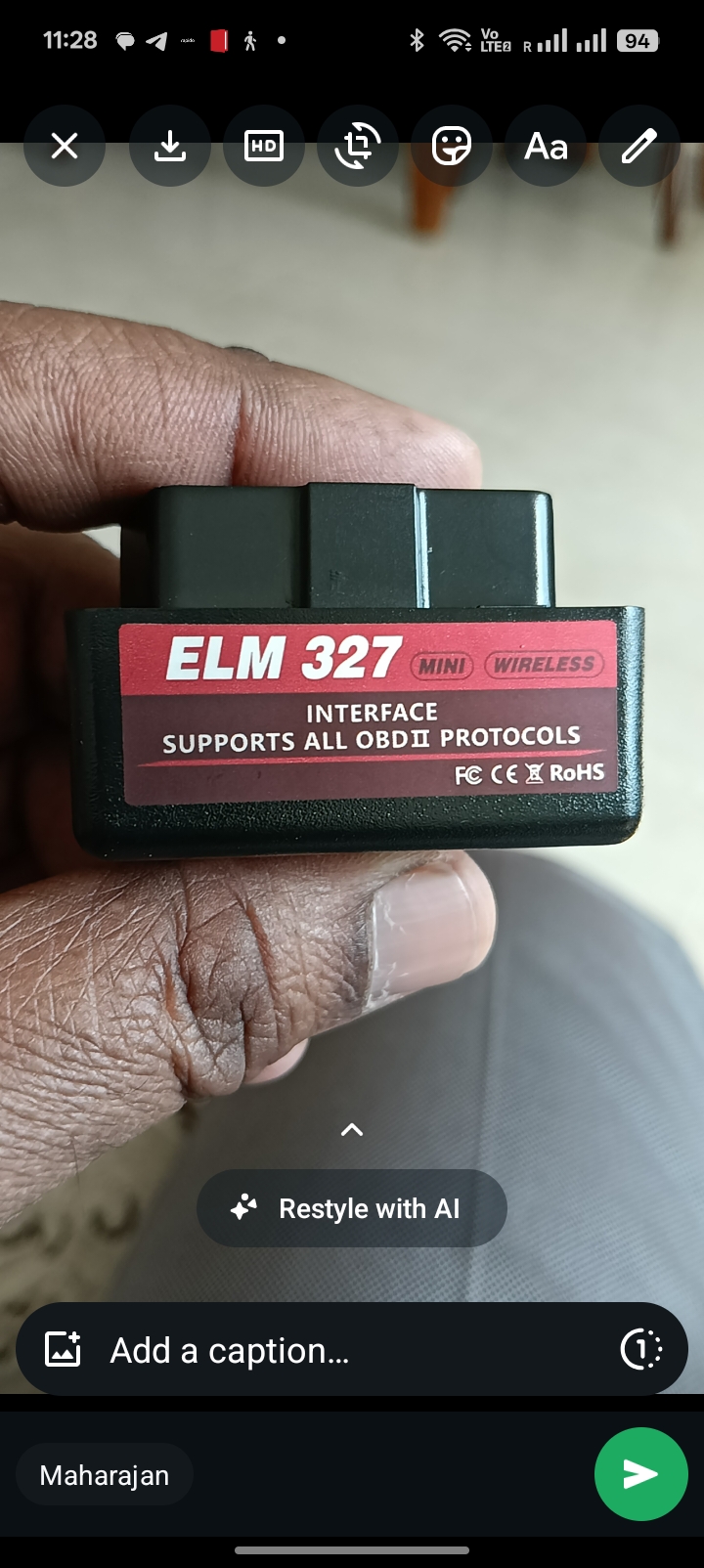

The device shown in your screenshot is the industry-standard ELM327 Mini Wireless Interface. It is an automotive diagnostic bridge that plugs directly into a vehicle's standard 16-pin OBD-II (J1962) port (located beneath the dashboard / steering wheel in 99% of cars manufactured since 2008).

Form Factor OBD-II 16-Pin Male (J1962)

Wireless Link Bluetooth SPP / 2.4 GHz Wi-Fi

Microcontroller Microchip PIC18F25K80

Operating Voltage 12V DC (9V – 16V Vehicle Bus)

Current Draw ~45 mA (Low-power standby)

Certifications FCC, CE, RoHS Compliant

1. Can We Create an Android App to Receive Data from the Car?

Direct Answer: YES, 100% Absolutely. It is fully standard, highly reliable, and supported natively by Android.

Android devices have native hardware support for Bluetooth Serial Port Profile (SPP / RFCOMM) via BluetoothSocket using the standard Serial UUID 00001101-0000-1000-8000-00805F9B34FB.

How the App Talks to the Car:

Bluetooth Discovery & Pairing: The app scans for the paired ELM327 device (name: OBDII or OBD-II, PIN: 1234 or 0000).
AT Command Handshake: The app sends text AT commands to wake up the chip, auto-detect the vehicle's CAN bus baud rate, and silence echo.
PID Query Scheduler: The app requests standard Mode 01 Parameter IDs (e.g., 01 0C for RPM) at 10–20 queries per second.
Real-Time Parsing & Gauges: Raw hex response bytes from the ECU are converted to human values and rendered on visual dashboard gauges.
Cloud Telematics Sync: Live trip telemetry (speed, fuel usage, distance, fault codes) is streamed directly to our server database.

// Sample Android Kotlin Communication Loop
val uuid = UUID.fromString("00001101-0000-1000-8000-00805F9B34FB")
val socket = elmDevice.createRfcommSocketToServiceRecord(uuid)
socket.connect()

val writer = socket.outputStream.bufferedWriter()
val reader = socket.inputStream.bufferedReader()

// 1. Initialize ELM327
writer.write("ATZ\r");    writer.flush(); reader.readLine() // Reset
writer.write("ATE0\r");   writer.flush(); reader.readLine() // Echo off
writer.write("ATSP0\r");  writer.flush(); reader.readLine() // Auto-protocol

// 2. Query Engine RPM (PID 01 0C)
writer.write("010C\r");   writer.flush()
val response = reader.readLine() // e.g. "41 0C 1A F8"
val (a, b) = parseHexBytes(response)
val rpm = ((a * 256) + b) / 4 // 1,726 RPM!


2. Real-Time Parameters We Can Read from the Vehicle

Standard OBD-II Parameter IDs (Mode 01) supported by all modern vehicles:

PID 01 0C

Engine RPM

Revolutions per minute (0–8,000 RPM)

PID 01 0D

Vehicle Speed

Actual ground speed (km/h & MPH)

PID 01 05

Coolant Temperature

Engine temperature (-40°C to +215°C)

PID 01 04

Calculated Engine Load

Instant load percentage (0–100%)

PID 01 11

Throttle Position

Pedal depression percentage (0–100%)

PID 01 2F

Fuel Level Input

Remaining fuel tank capacity (0–100%)

PID 01 42

Battery / Alternator Voltage

Electrical system voltage (e.g. 14.2V)

PID 01 10

MAF Airflow Rate

Mass air flow rate in grams/sec

PID 01 0B

Intake Manifold Pressure

Turbo boost / vacuum pressure (kPa)

MODE 03 / 07

Diagnostic Trouble Codes

DTC Faults (P0300, P0171, P0420)

MODE 04

Clear Trouble Codes

Resets Check Engine Light (MIL)

PID 01 5E

Instant Fuel Rate

Liters/hour & km/liter efficiency

3. Commercial Value per Installation & Monetization Strategy

How to turn this into a profitable, high-margin business model:

Model 1 · Direct E-Commerce

Hardware + App Retail Bundle

₹1,499 – ₹1,999 ($20–$25)

Wholesale cost of the ELM327 dongle is only ₹350 – ₹450 ($4.50 – $5.50) in bulk. Sell a branded box containing the dongle + custom app activation key for ₹1,499.

Net Profit per Sale:

₹1,100 ($14.50) · 300% Margin

Model 2 · Recurring SaaS

Fleet Telematics & Taxis

₹499 / vehicle / mo ($6/mo)

Traditional fleet trackers require mechanics to cut car wiring (which voids the car warranty!). Our OBD plug-and-play solution installs in 5 seconds with zero wire modifications.

100-Vehicle Fleet:

₹50,000 / month recurring

Model 3 · Per-Scan Microtransactions

Used Car Health Certificate

₹299 / report ($4)

When someone is buying a second-hand car, they plug in the dongle. The app generates a tamper-proof PDF report showing hidden ECU error codes, odometer mismatch, and engine freeze-frames.

Gross Margin:

98% Pure Software Profit

Model 4 · Marketplace Referral

Auto Repair Workshop Leads

₹300 – ₹600 / lead ($5–$8)

When a car's check engine light turns on, the app translates the cryptic code (e.g. "P0135: O2 Sensor Heater Circuit Bank 1") into plain English and offers 1-tap booking at partner garages.

Garage Commission:

₹400 / service booking

Revenue & Profit Projections by Scale

Scale	Hardware Units Sold	SaaS / Telematics Subscribers	Monthly Recurring	Total Annual Net Profit
Stage 1: Launch	250 units	50 fleet vehicles	₹25,000 ($300)	₹5,75,000 ($6,900)
Stage 2: Growth	1,000 units	300 fleet vehicles	₹1,50,000 ($1,800)	₹29,00,000 ($35,000)
Stage 3: Scale	5,000 units	1,500 fleet vehicles	₹7,50,000 ($9,000)	₹1,45,00,000 ($175,000)

4. Implementation Plan & Technology Stack

Phase 1: Android Engine

Bluetooth RFCOMM listener, AT command parser, and multi-PID scheduler.

Phase 2: Live UI Gauges

Custom digital tachometer, speedometer, battery voltage dial, and HUD night mode.

Phase 3: DTC Fault Scanner

Scan 5,000+ generic and manufacturer OBD codes and 1-tap "Clear Trouble Codes" button.

Phase 4: Cloud Telematics

Live fleet map, fuel efficiency leaderboard, trip history, and exportable PDF health reports.
